Speedgate
Speed gates are the perfect solution for access control and passage in to secured areas. Their standards passages of 600 mm can be optionally enlarged up to 900 mm for wheelchairs and material transport carriages. The passing person is followed by number of sensors, thus offering the highst degree of security and safety speed gates range consist of swing, flap and sliding models.
DTS110
- Dimensions: 1500 x 980 x 130 mm
- Wide passage: 550 mm - 1150 mm
- Passage capacity: 40 per./min
- Materials: stainless steel/tempered glass (plexiglass)
- Height of barrier: 900 mm - 1700 mm
Technical Specifications
| implementation: | broušená nerez, plexi nebo tvrz. bezp. sklo |
|---|---|
| opening/closing time: | 0,6–1,2 s |
| throughput capacity: | 40 osob/min. |
| dimensions: | 1500 × 980 × 130 mm |
| weight: | 80 / 100 Kg |
Download
Question or enquiry about DTS110
DMS120
- Dimensions: 1420 x 200 x 1000 mm
- Wide passage: 550 mm - 900 mm
- Passage capacity: 40 per./min
- Materials: stainless steel/tempered glass (plexiglass)
- Height of barrier: 900 mm
Technical Specifications
| implementation: | jednostranné / oboustranné |
|---|---|
| width of passage: | 550–900 mm |
| opening/closing time: | 0,8–1,2 s |
| throughput capacity: | 40 osob/min. |
| dimensions: | 1420 × 200 × 1000 mm |
Download
Video
DSF640
- Dimensions: 1380 x 270 x 1000 mm
- Wide passage: 600 mm
- Passage capacity: 40 per./min
- Materials: stainless steel/tempered glass (plexiglass)
Technical Specifications
| implementation: | nerez, akryl / sklo |
|---|---|
| width of passage: | 600 mm |
| opening/closing time: | 0,8–1,2 s |
| throughput capacity: | 40 osob/min. |
| dimensions: | 1380 × 270 × 1000 mm |
| weight: | 65 Kg |
Download
Video
DTF600
- Dimensions: 1400 x 308 x 1020 mm
- Wide passage: 600 mm
- Passage capacity: 40 per./min
- Materials: stainless steel/tempered glass (plexiglass)
Technical Specifications
| implementation: | nerez, plexisklo (tvrzené sklo) |
|---|---|
| width of passage: | 600 mm |
| opening/closing time: | 0,8–1,2 s |
| throughput capacity: | 40 osob/min. |
| dimensions: | 1400 × 308 × 1020 mm |
| weight: | 65 Kg |
| protection: | IP32 |

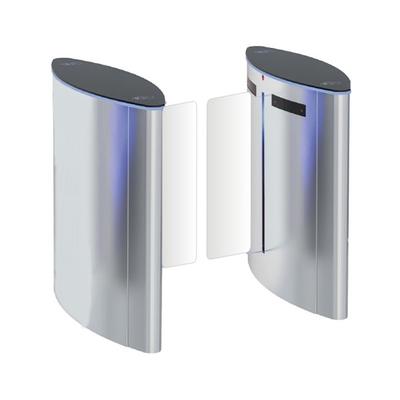

DNG460
- Dimensions: 1400 x 308 x 1020 mm
- Wide passage: 600 mm
- Passage capacity: 40 per./min
- Materials: stainless steel/tempered glass (plexiglass)
- Height of barrier: 1200 mm,1700 mm
Technical Specifications
| implementation: | nerez, křídla sklo / polykarbonát |
|---|---|
| width of passage: | 600 mm |
| opening/closing time: | 0,8–1,2 s |
| throughput capacity: | 40 osob/min. |
| dimensions: | 1400 × 308 × 1020 mm |
| weight: | 89 Kg |
| operating temperature: | -20°C až +70°C |
Download
Question or enquiry about DNG460

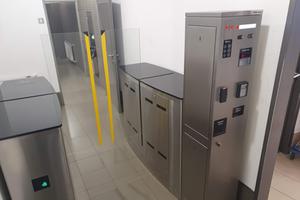

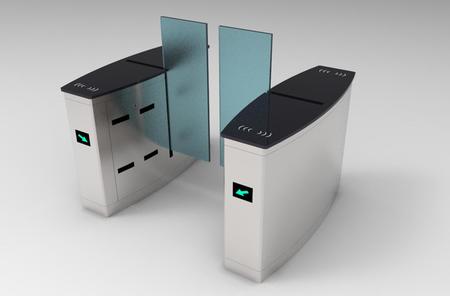

DNG490
- Dimensions: 1400 x 500 x 1020 mm
- Wide passage: 900 mm
- Passage capacity: 40 per./min
- Materials: stainless steel/tempered glass (plexiglass)
- Height of barrier: 1200 mm, 1700 mm
Technical Specifications
| implementation: | nerez, křídla sklo / polykarbonát |
|---|---|
| width of passage: | 900 mm |
| opening/closing time: | 0,8–1,2 s |
| throughput capacity: | 40 osob/min. |
| dimensions: | 1400 × 500 × 1020 mm |
| weight: | 96 Kg |
Download
Video
DTF900
- Dimensions: 1400 x 300 x 1020 mm
- Wide passage: 600/900 mm
- Passage capacity: 40 per./min
- Materials: stainless steel/tempered glass (plexiglass)
Technical Specifications
| implementation: | nerez, křídla plast |
|---|---|
| width of passage: | 600 / 900 mm |
| opening/closing time: | 0,8–1,2 s |
| throughput capacity: | 40 osob/min. |
| dimensions: | 1400 × 308 × 1020 mm |
| weight: | 65 Kg |
| protection: | IP32 |
